[LITLIQ] PB81 Light Grey Plant-Based Resin (1kg)

Regular price: $35.00
Sale price: $35.00
Regular price
Unit price: per

Shipping calculated at checkout.

Net Weight

Color

Quantity

Quantity must be 1 or more

Click here to get it for 12.5 USD/KG！US ORDERS ONLY

Click here to download the instruction manual

Click here to download the settings

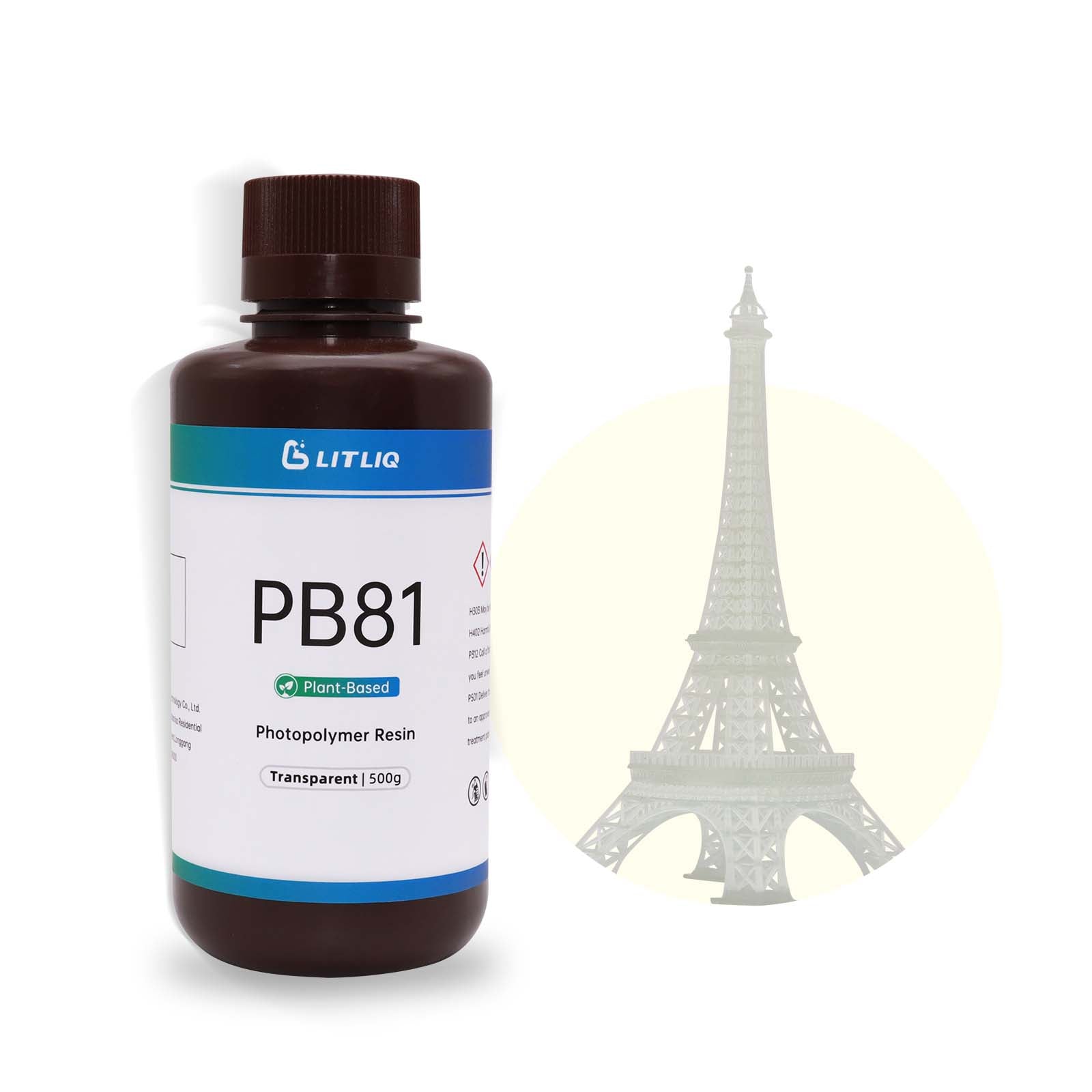

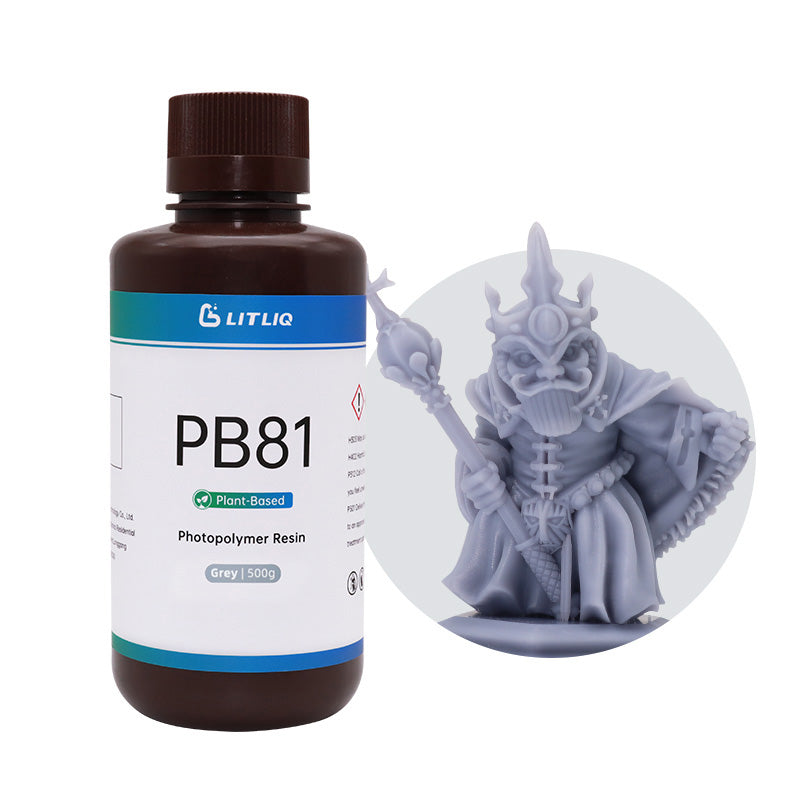

PB81 is a plant-based resin that contains raw materials extracted and synthesized from soybeans. Plant-based resin is more conducive to the ecological environment, with good fluidity and high precision.

▌ Attention

If white matter appears on the surface of the print, please increase the light-off delay time.
Post-curing in water is beneficial to alleviate prints deformation,post-curing time can be doubled in water.
Make sure the prints are evenly exposed to UV light. Both the front and back of the print should be cured.

▌ Certification

▌ Descriptions

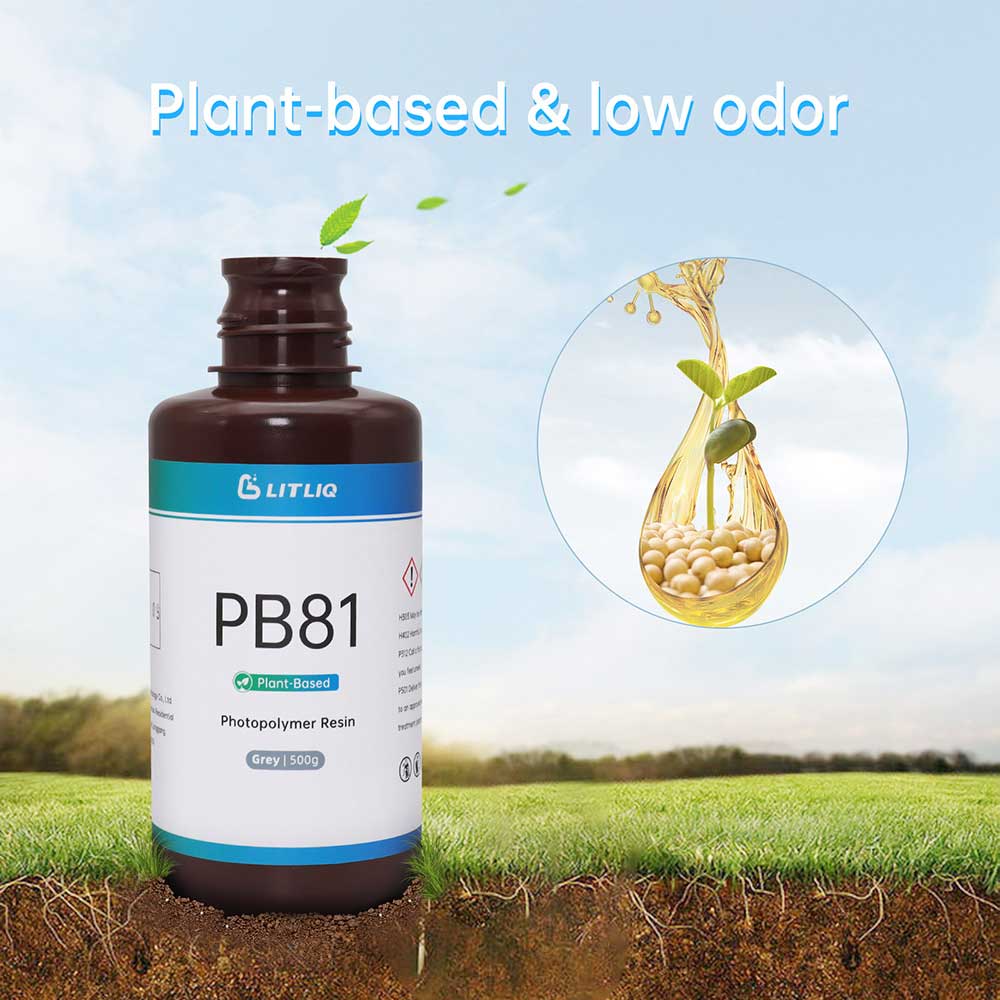

Plant-based raw materials

Part of the raw material in the resin comes from soybeans, and it smells of a faint soybean oil fragrance. We are working hard to create a beautiful living environment.

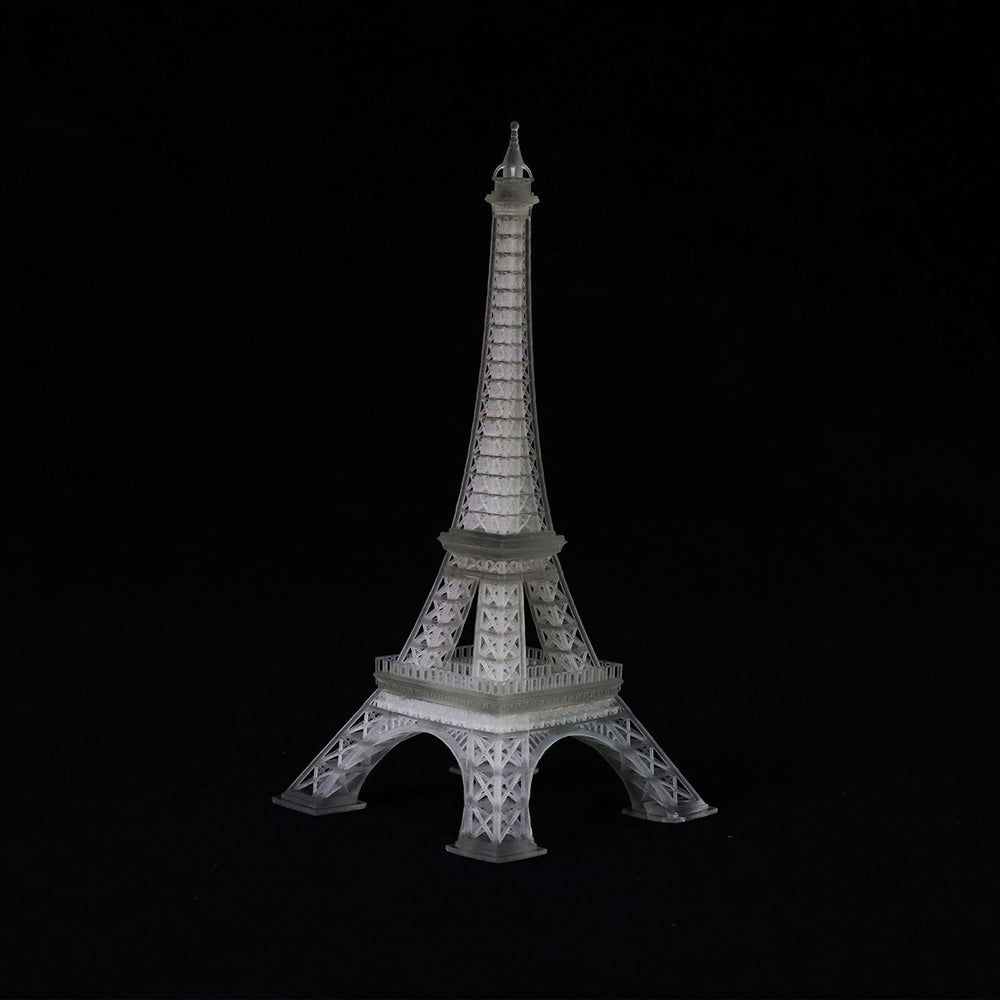

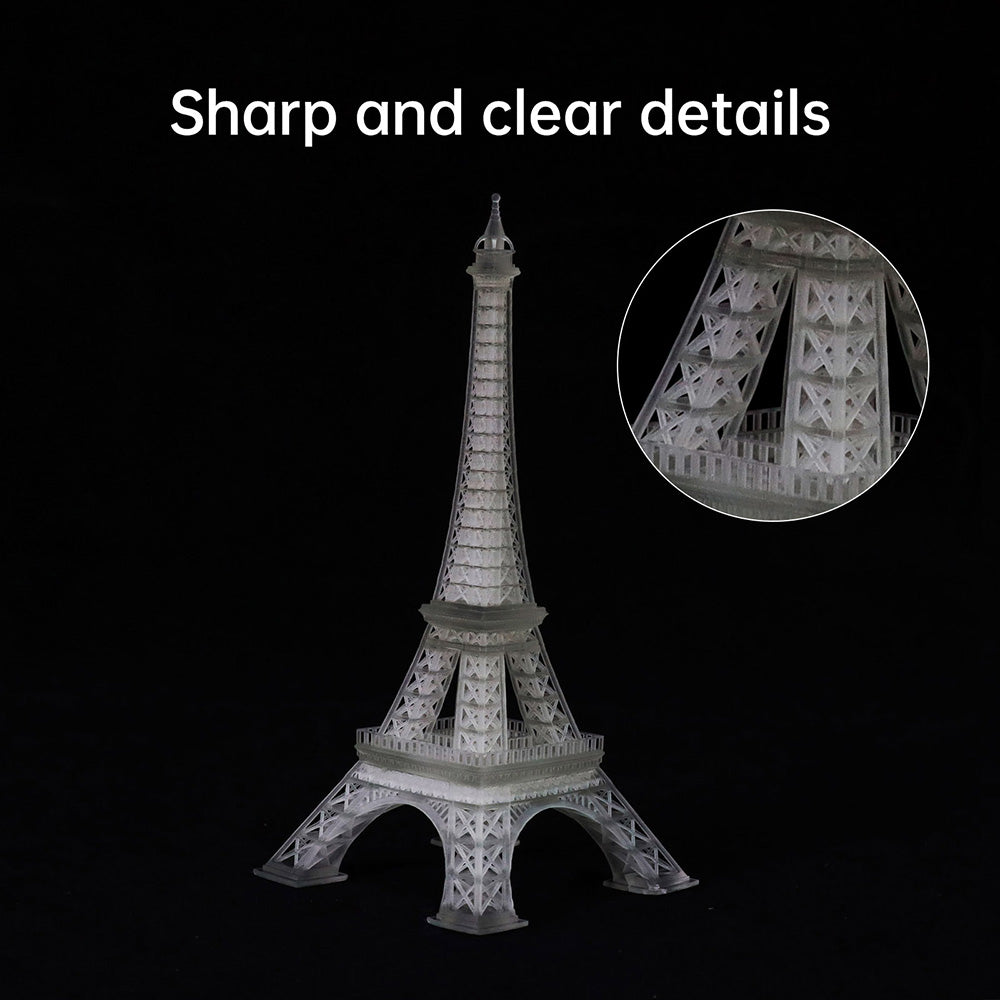

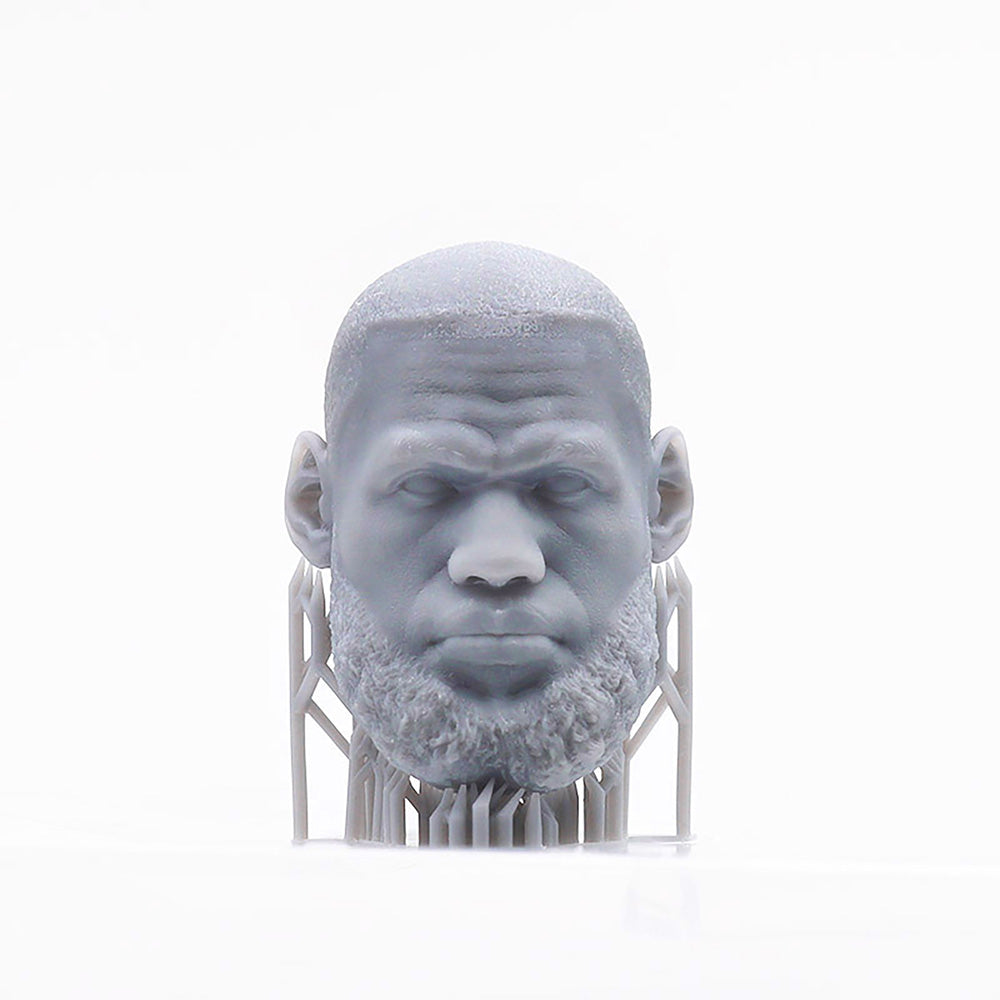

Sharp and clear details

After a lot of printing tests and repeated formulation optimization during the development stage, the PB81 resin can be compatible with RGB or Mono screen printers, and the prints can get clear and sharp details.

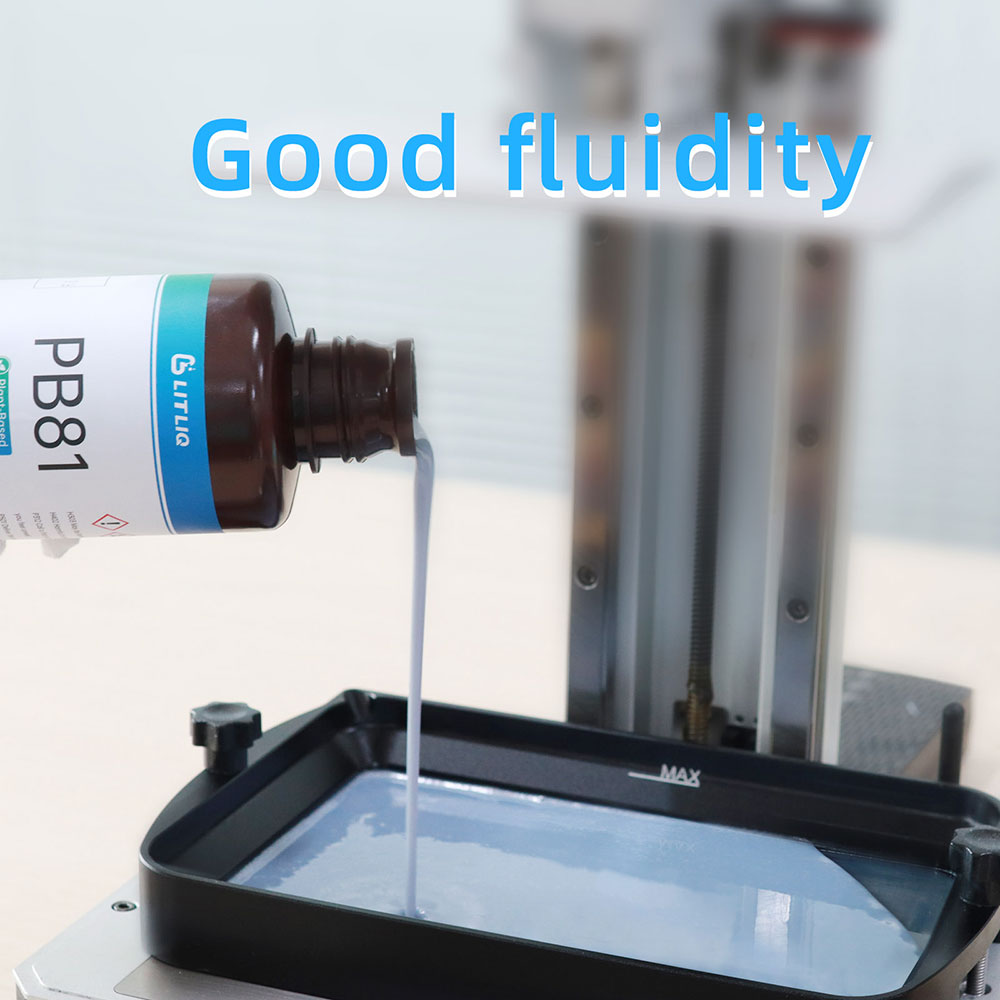

Good fluidity

While ensuring that the prints are not so brittle, we optimized the viscosity of the resin, thereby reducing the rise and fall time of the build plate during the printing process, and speed up the printing.

Easy to clean

PB81 resin liquid is easy to dissolve in cleaning agents such as alcohol or IPA. At the same time, low-viscosity liquids are not easy to accumulate in the gaps of the printed parts, which makes the cleaning process easier.

Broad adaptability

PB81 resin is suitable for all mainstream LCD/MSLA/DLP 3d printers on the market, including RGB or Mono screen printers.

▌ Cleaning and Post-curing

Cleaning time: 30s
Cleaning solvent: 95% Ethanol or IPA
Post-curing light source: 385-405nm UV(40W)
Post-curing time: 1min

▌ Compatible 3D Printer

All series of Anycubic，Elegoo，nova3d，Longer，QIDI TECH，Phrozen，Epax，Kelant，Wanhao，Creality，UNIZ etc. UV 405nm LCD resin 3D printer
All series of Moonray，Flashforge，Makex，Shining etc. UV 405nm DLP resin 3D printer

▌ Mechanical properties

	METHOD	DATA
Shore Hardness	ASTM: D2240-05	88-92D
Tensile Strength	ASTM: D638-14	36-53MPa
Flexural Strength	ASTM: D790-10	56-62MPa
Flexural Modulus	ASTM: D790-10	1.8-2.2Gpa
Notched IZOD	ASTM: D256-10	9.86J/m
Elongation at Break	ASTM: D638-14	6.5-8%
Viscosity（25℃）	ASTM: D4212-10	165mpa.s
