Until the old color is sold out, orders will be fulfilled with either the old or the new color at random.
TH-BJD, as a non-yellowing and wear-resistant tough material, is available in three colors: Ultra White, Bronze, Cream White, and Cream Pink, and can be used as the preferred material for BJD. It is also suitable for printing action figure prototypes or joints without thin-wall or slender-column structures, as well as industrial prototypes, shells, parts, etc. that require toughness and wear resistance in the short term.
▌ Key Features
Scratch and Wear Resistance
Accurate Shape
Multiple BJD Colors
Non-Yellowing
Long-term crack resistance
Tough, Drop-resistant
Easy to Clean
Resistant to Thinners
Stable Printing
Smooth Surface
▌ Descriptions
- Specially designed for BJD
- Multiple BJD Colors, Non-Yellowing
- Crack-resistant over time, Tough, Drop-resistant
- Easy to Clean, Resistant to Thinners
The prints can be quickly cleaned, with no sticky residue left on the surface, allowing to enter the next step quickly and effectively shorten post-processing time. The resin is also resistant to thinners, making it suitable for repeated makeup application and removal on BJD dolls without being eroded or damaged.
- Smooth Surface, Stable Printing
TH-BJD resin with unique formula,is easy to print, and supports 0.03mm layer height setting, ensuring its stable printing,less post-processing time and more smooth and delicate surface, which closely resembling the texture of traditionally manufactured products. Additionally, the details on the doll’s head, such as the eye and mouth seams, are more defined and realistic.
▌ Print Settings - 50um
TH-BJD Ultra White/Cream White/Cream Pink
- Operating Temp: 25~35℃/77~95℉
- Layer Height: 0.05mm
- Exposure Time: 2~3s
- Bottom Exposure Time: 60~100s
Lifting Height:
- LCD Screen size less than 8.9 inches: 6mm
- LCD Screen size ≥8.9 inches: ≥9mm
- Rest Time After Retract/Off times /Light-off Delay: ≥3s
TH-BJD Bronze
- Operating Temp: 25~35℃/77~95℉
- Layer Height: 0.05mm
- Exposure Time: 2.6~3.9s
- Bottom Exposure Time: 60~80s
Lifting Height:
- LCD Screen size less than 8.9 inches: 6mm
- LCD Screen size ≥8.9 inches: ≥9mm
- Rest Time After Retract/Off times /Light-off Delay: ≥3s
▌ Print Settings - 30um
TH-BJD Ultra White/Cream White/Cream Pink
- Operating Temp: 25~35℃/77~95℉
- Layer Height: 0.03mm
- Exposure Time: 1.4~2.1s
- Bottom Exposure Time: 60~100s
Lifting Height:
- LCD Screen size less than 8.9 inches: 6mm
- LCD Screen size ≥8.9 inches: ≥9mm
- Rest Time After Retract/Off times /Light-off Delay: ≥3s
TH-BJD Bronze
- Operating Temp: 25~35℃/77~95℉
- Layer Height: 0.03mm
- Exposure Time: 1.8~2.7s
- Bottom Exposure Time: 60~80s
Lifting Height:
- LCD Screen size less than 8.9 inches: 6mm
- LCD Screen size ≥8.9 inches: ≥9mm
- Rest Time After Retract/Off times /Light-off Delay: ≥3s
▌ Cleaning and Post-curing
- Cleaning tools: Hand washing
- Cleaning time: ≤5mins
- Cleaning liquid: 95% Ethanol or IPA
-
Post-curing method: For example, using the Anycubic Wash Plus curing and washing machine, cure the front and back of the printed object for 10 minutes each.
▌ Compatible 3D Printer
-
All series of Anycubic，Elegoo，Nova3d，Peopoly，Phrozen，Epax，Creality，Zortrax, BIQU, QIDI, UNIZ, Flashforge, Voxelab, Longer, Uniformation etc. UV 385-410nm LCD resin 3D printer
-
All series of Anycubic，Asiga, Elegoo, Solus series, Miicraft, Kudo3d, Flashforge，Makex，Shining etc. UV 385-410nm DLP resin 3D printer
▌ Material performance parameters
| METHOD | Cream White | Ultre White | Cream Pink | |
| Viscosity(25℃)(mpa.s) | ASTM:D4212-10 | 651 | 661 | 675 |
| Liquid density(g/cm³) | ASTM:D4052-22 | 1.129 | 1.13 | 1.132 |
| Solid density(g/cm³) | ASTM:D792-20 | 1.216 | 1.212 | 1.211 |
| Shore Hardness(D) | ASTM:D2240-05 | 80 | 80 | 80 |
| Tensile Strength(MPa) | ASTM: D638-14 | 43.67 | 45.85 | 44.24 |
| Tensile Modulus(MPa) | ASTM: D638-14 | 1430 | 1467 | 1422 |
| Elongation at Break | ASTM: D638-14 | 17% | 17% | 18% |
| Flexural Strength(MPa) | ASTM: D790-10 | 79.71 | 79.35 | 76.25 |
| Flexural Modulus(MPa) | ASTM: D790-10 | 2312 | 2285 | 2217 |
| Notched IZOD(J/m) | ASTM:D256-10 | 17.46 | 18.49 | 17.77 |
| Water Absorption（24hr） | ASTM:D570-22 | 1.16% | 1.25% | 1.05% |
Customer Reviews
I've only been printing for about half a year now but I've tried so many resins and Resione is at the top of my list! The BJD resins cure exceptionally well so I don't feel like I'm having to crank up my exposure times or fight with delamination, all while getting beautiful details on my Saturn. I would recommend a 50/50 mix of BJD to TH72 if you're looking for something with a little more durability.
I’ve recently started using resione and it is astronomically better than anything else I’ve encountered on the market. This is a perfect skin tone for toys and figures which is what I use it for. I use it all the time and it works! Had to up the exposure time and bottom exposure a bit than the instructions for my elegoo printer (by abt double lol) but honestly it works so great.
Shipped INSANELY fast too! I was pleasantly surprised.
Gorgeous resin! So easy to print with, amazing details, beautiful colour and once sanded, smooth and lovely to handle. Seems to be well durable enough to take the rather rough process of doll stringing with elastic. I love it and will definitely be back for more. I won’t use any other resin for dolls in the future!
I love how this resin look and feels. I also like that it didn't brake when I drop it. With other resin i have used this one didn't brake when I drop it. I would totally recommend this resin.

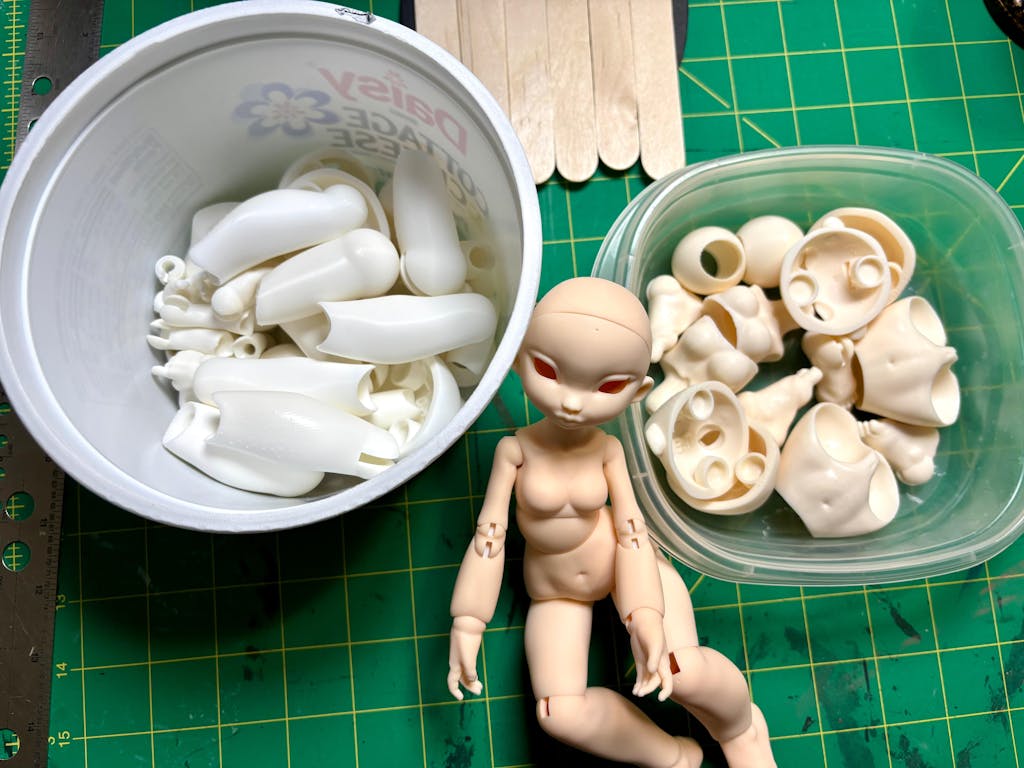

I have printed about 10 dolls from each color option so far and they have turned out wonderful. It doesn’t take too much to sand to get a soft finish and when the joints rub I haven’t seen any powder residue like other resins.
I am so happy that a tan color is coming soon!
